External Controls

Single Voltage
Single Point Connection

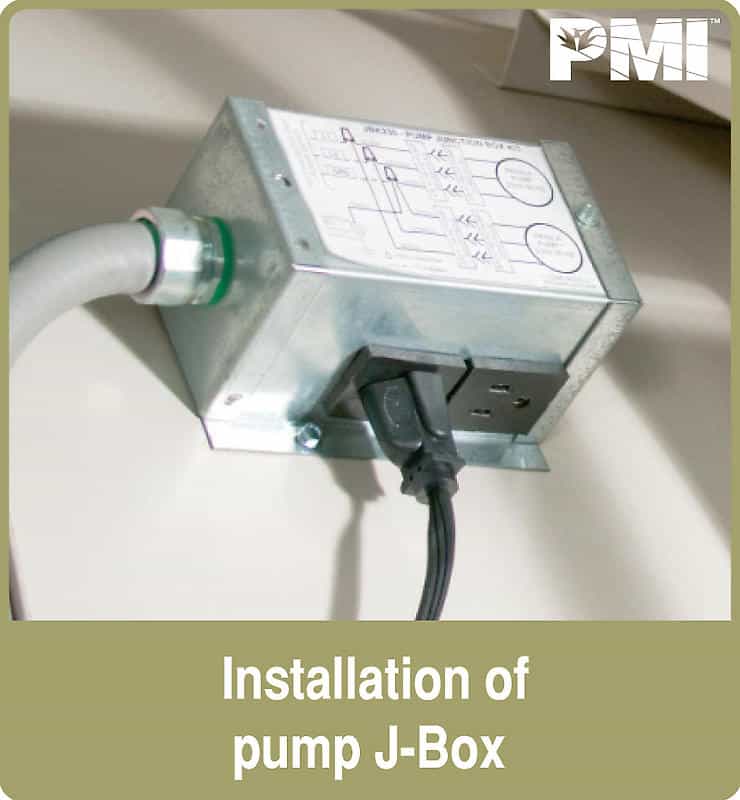

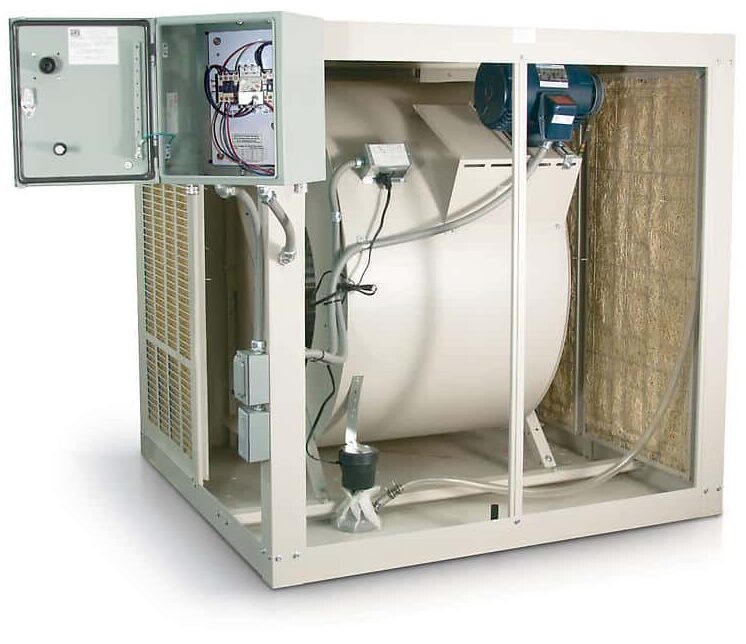

Factory pre-wired service includes installation and wiring of the motor, motor sheave, float valve, pump and pump junction box. The Control box for the SVSPC is for simplistic wiring specifically designed for the desired motor voltage required.

FEATURES

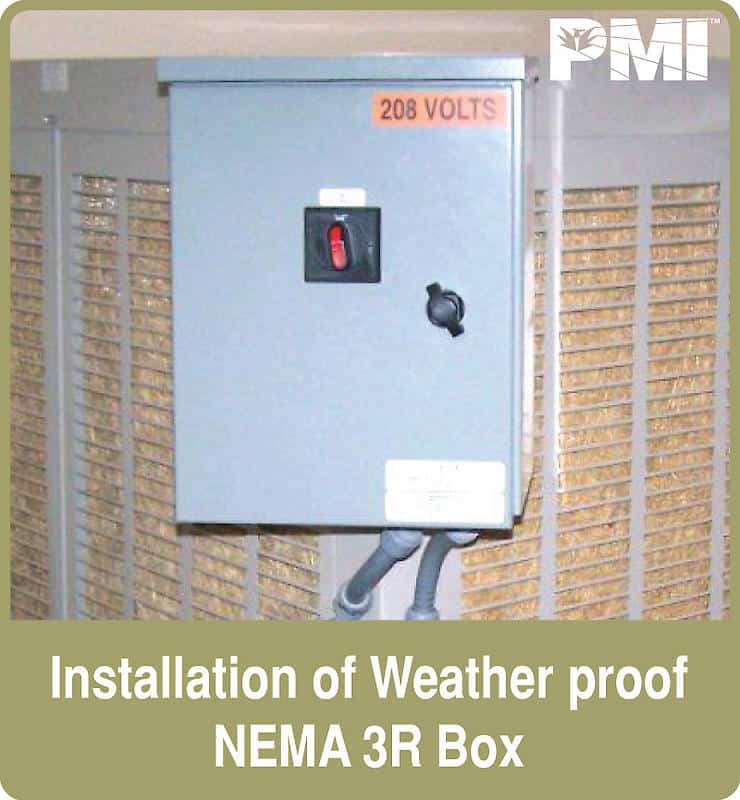

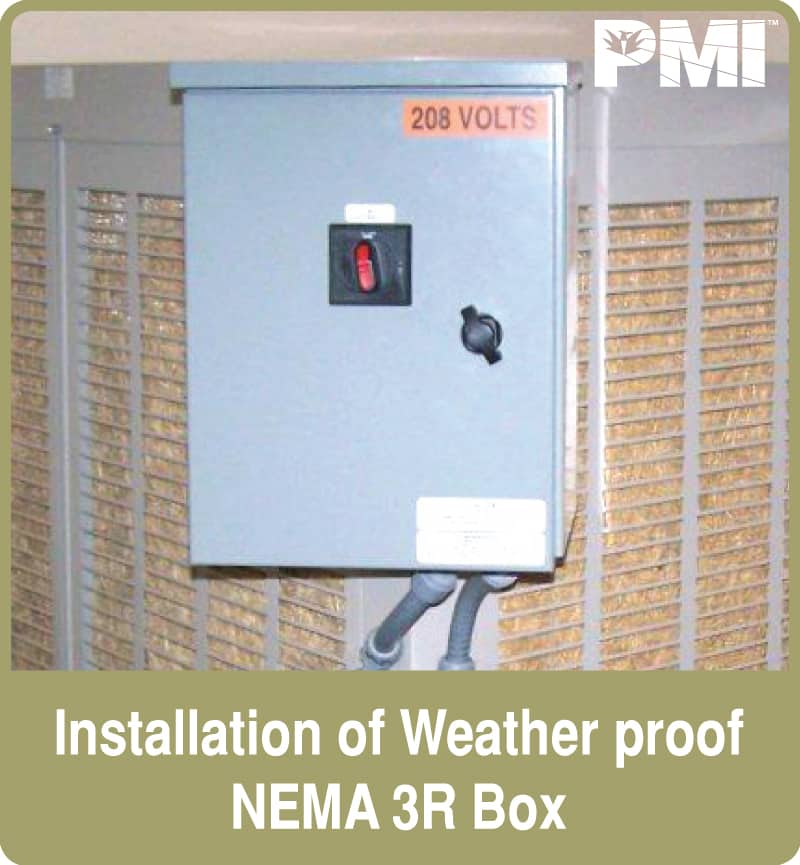

Weather proof NEMA 3R box
Single phase or 3 phase motor control
Class 10 overload protection for the 3 phase motors
Circuit breaker serves as disconnect for motor – separate field supplied disconnect for motor not required
Separate disconnect for pump/control circuit – easily shut down unit for inspection
Relay to control pump operation
Terminal blocks for input/output connections in the control box
The SVSPC has a simple multi-position switch for manual control
VFD motor (fan) controller option is available upon request. Contact PMI for pricing and availability

BACnet BMS compatible fully integrated in cooler controls, room sensors available.

Optional:

24 Volt
Easy to install
Provides a pad “Pre-Wet” & “Rinse” cycle
Full 24/7 Programmable capability
Compatible with all SVPC models
Large Blue Display for easy low-light viewing
365 Day Programmable Calendar
UL Listed

INCLUDES:

Control Voltage Transformer
Pump Transformer
Motor Contactor
Pump Contactor
Thermal Motor Protection
Fusing
Disconnect for Primary Voltage
Transformer for 208-204/480V 3-Phase to 120V 1-phase
Transformer from 120V To 24V for the control circuit

SPECIAL SERVICE SOLUTIONS

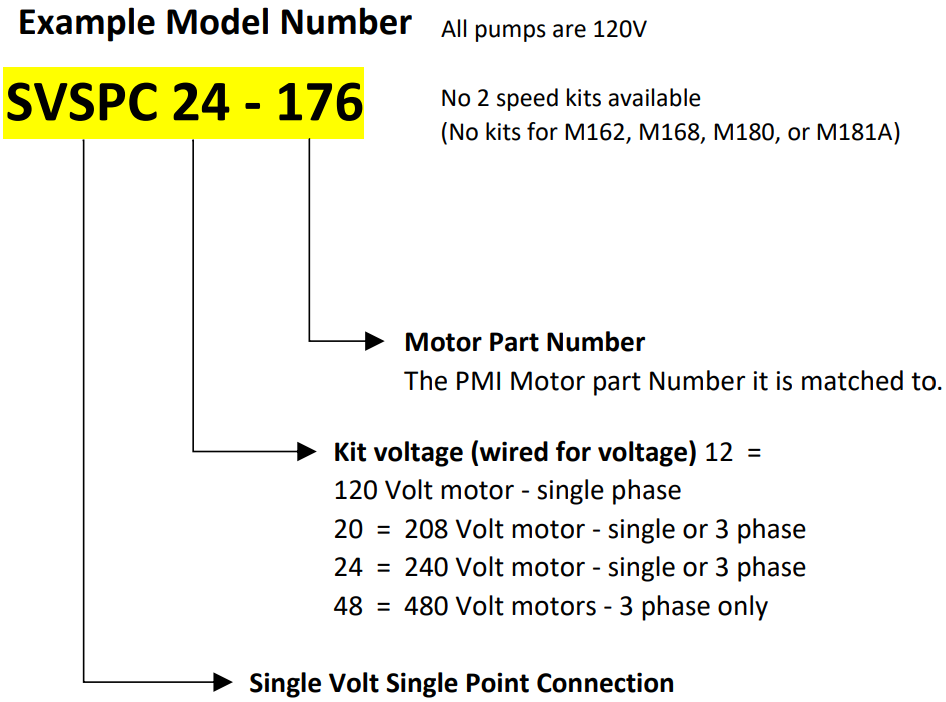

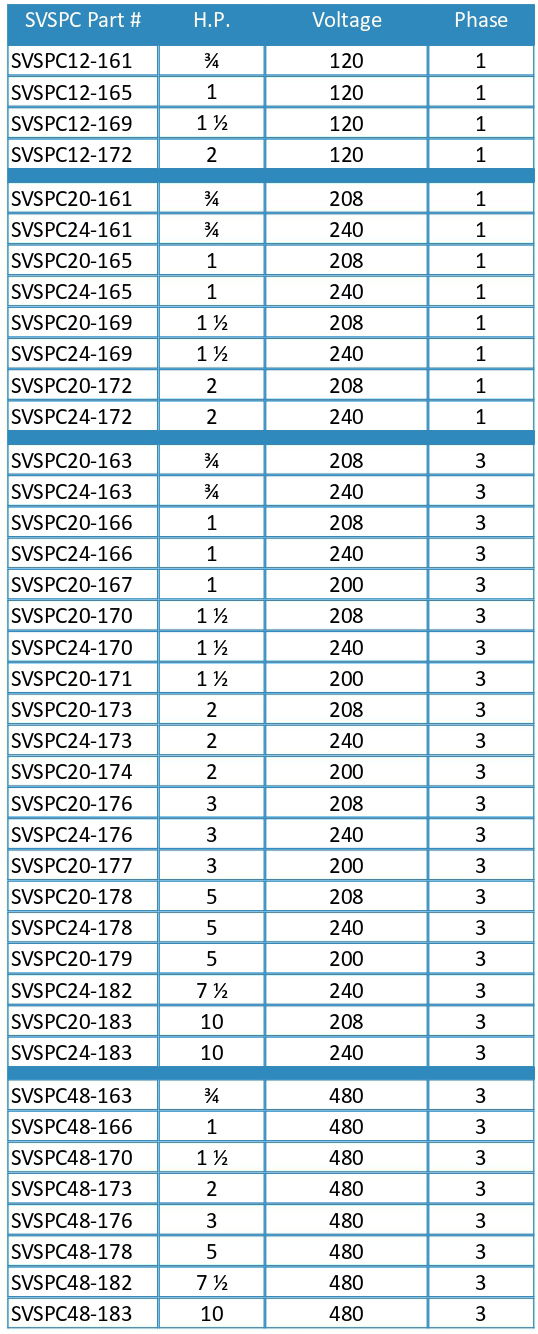

SVSPC - SINGLE VOLTAGE - SINGLE POINT CONNECTION

Factory pre-wire service includes installation and wiring of the motor, motor sheave, float valve, pump and pump junction box, The control box for the SVSPC is for simplistic wiring especially designed for the desired motor voltage required.

(Optional)
