Residential

AeroCool Series

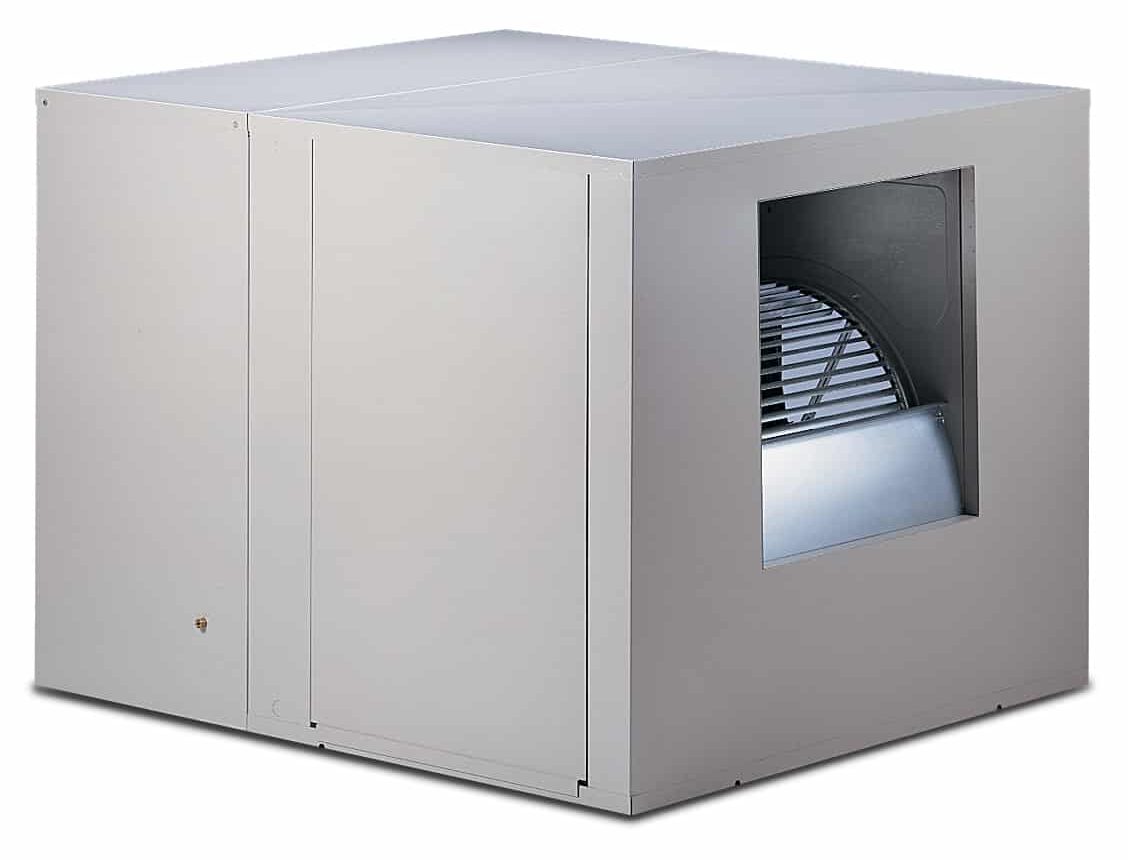

Aero Trophy Side Draft 3800

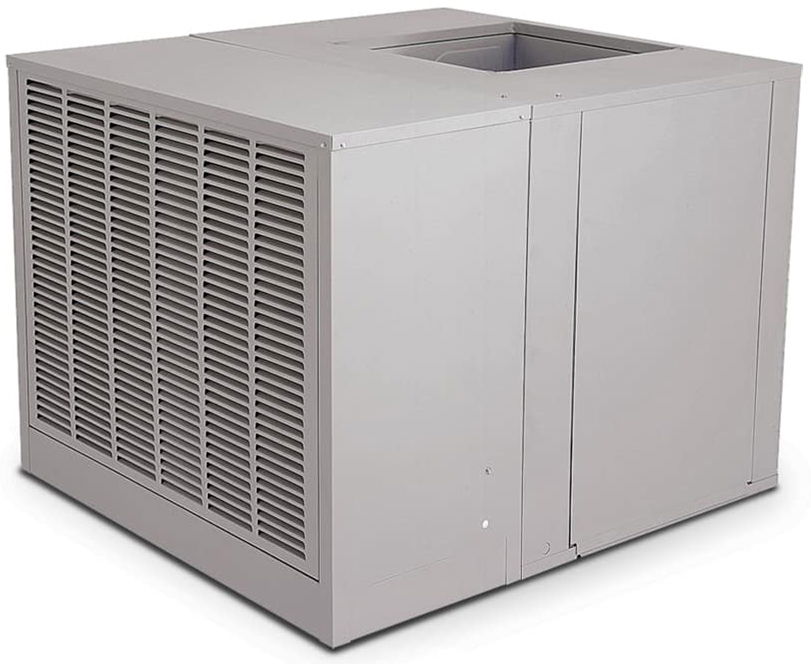

Aero Trophy UpDraft

Longevity & Low Maintenance
Aerocool Series

Utilizing single inlet design

Aerocool Series provides the ultimate protection available for the longevity of your cooler. High efficiency evaporative cooling, low maintenance and long life of the Trophy Series makes this cooler your award winner.

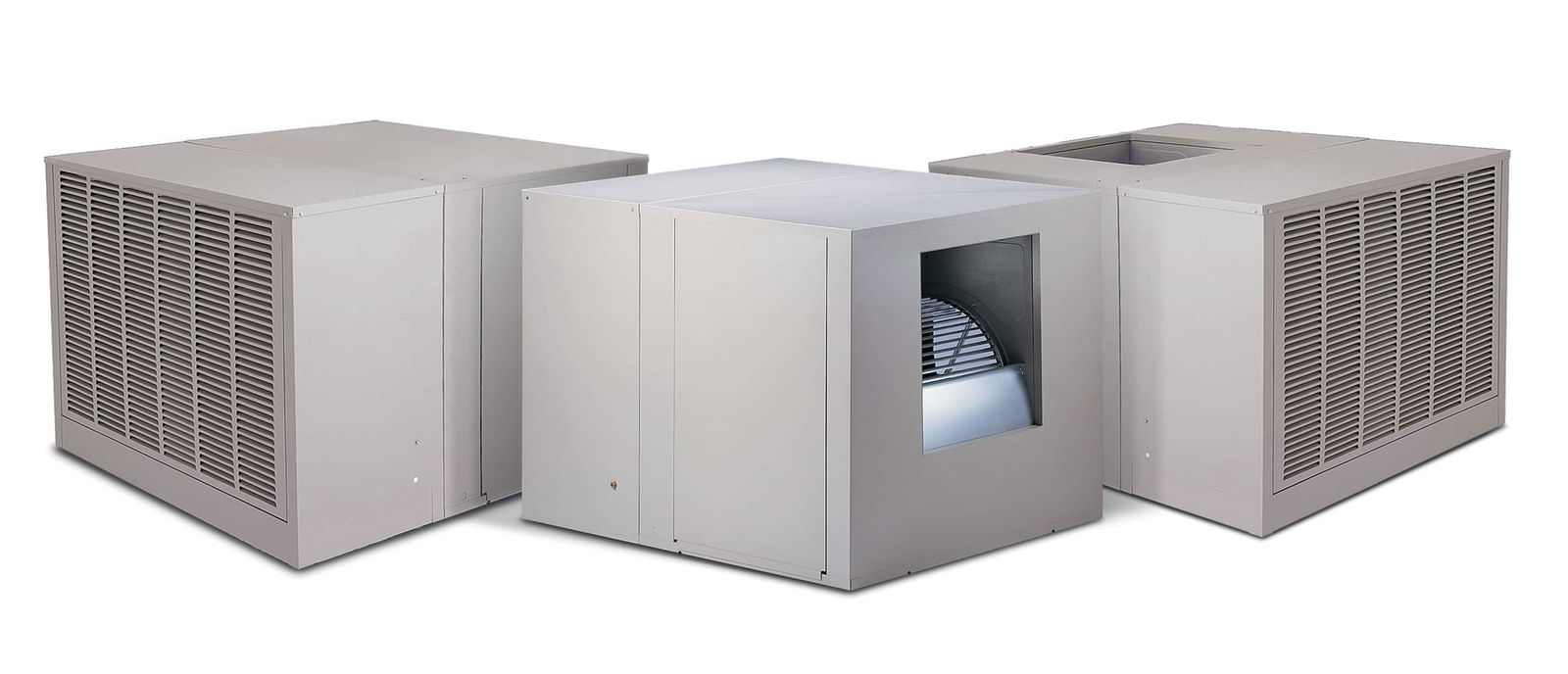

Responding to your specific requirements, these units are available in three models: down, side and the up discharge for concealed ground level applications.

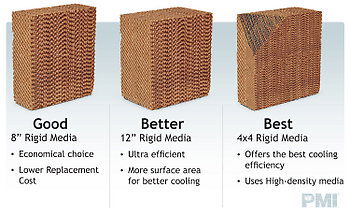

Choosing the Right Model To Meet Your Needs

The Aerocool Series air coolers are designed to operate at maximum efficiency with minimal maintenance. The Rigid Media gives the Aerocool Series the ability deliver colder air while reducing the time spent replacing standard aspen media.
8” Standard Rigid Media
Delivers reliable cooling with a solid balance of performance and affordability, making it ideal for standard applications.
12” Standard Rigid Media
Provides enhanced cooling efficiency, absorbing more heat for faster temperature control, perfect for environments needing extra cooling power.
4×4 Hi Efficiency Rigid Media
The highest-performing option in our product line, offering superior cooling efficiency, maximizing airflow and temperature reduction for demanding applications.

Benefits of the Aerocool Series

  • High Efficiency Rigid Media
    The Aerocool evaporative cooler beats the others cold — it is more efficient and less costly to operate. In fact, it is up to 13% more efficient than conventional coolers. Rigid media material provides cooler air and can last up to 10 times longer than old style aspen pads.
  • Pro-Armor
    The polymeric inner structure completely shields the wet section from corrosive interaction, providing long life and worry free operation.
  • Low Sump Pump
    The most powerful pump on the market today. US Patent #5,527,157
  • Easy Access Gravity-Held Doors
    Easy to remove access doors reduce maintenance time.
  • Peblar XT Protective Powder Coat
    Our exclusive Peblar XT surface preparation is the highest quality architectural grade finish used in the industry. This durable multi-layer bonded treatment protects your cooler against corrosion and assures years of reliable service.

Optional Accessories

Pro-Shield This weatherizing panel prohibits wind and cold from entering into your home during the off-season. Easy to install, media protection is also afforded thereby increasing the life of the unit.

Specifying U.L. Listed models
When specifying U.L. Listed models, add a “U” prefix to the front of the model number. These models require the use of our supplied motor kits and pumps.

Example: UTD4801

AeroCool Series Literature

AeroCool Series Brochure
AeroCool Series Owner’s Manual English
AeroCool Series Owner’s Manual Spanish
AeroCool Series Submittal Sheet
AeroCool Series Replacement Parts List
AeroCool Series Warranty
