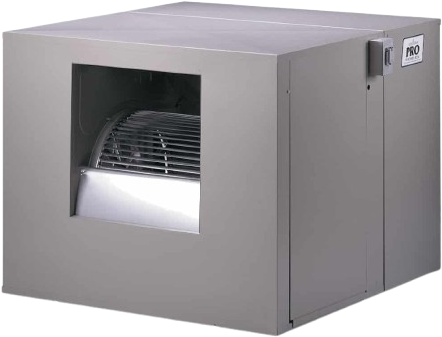

ProSeries side

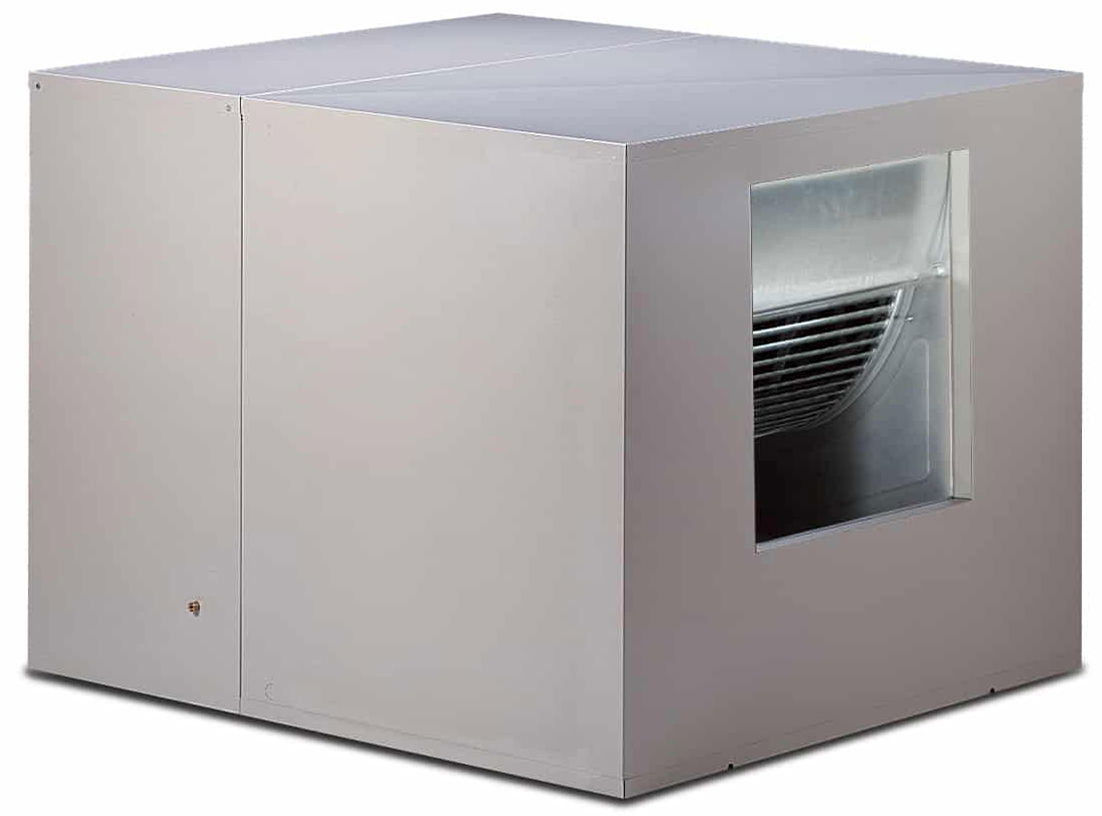

Aero Trophy Side Draft 3800

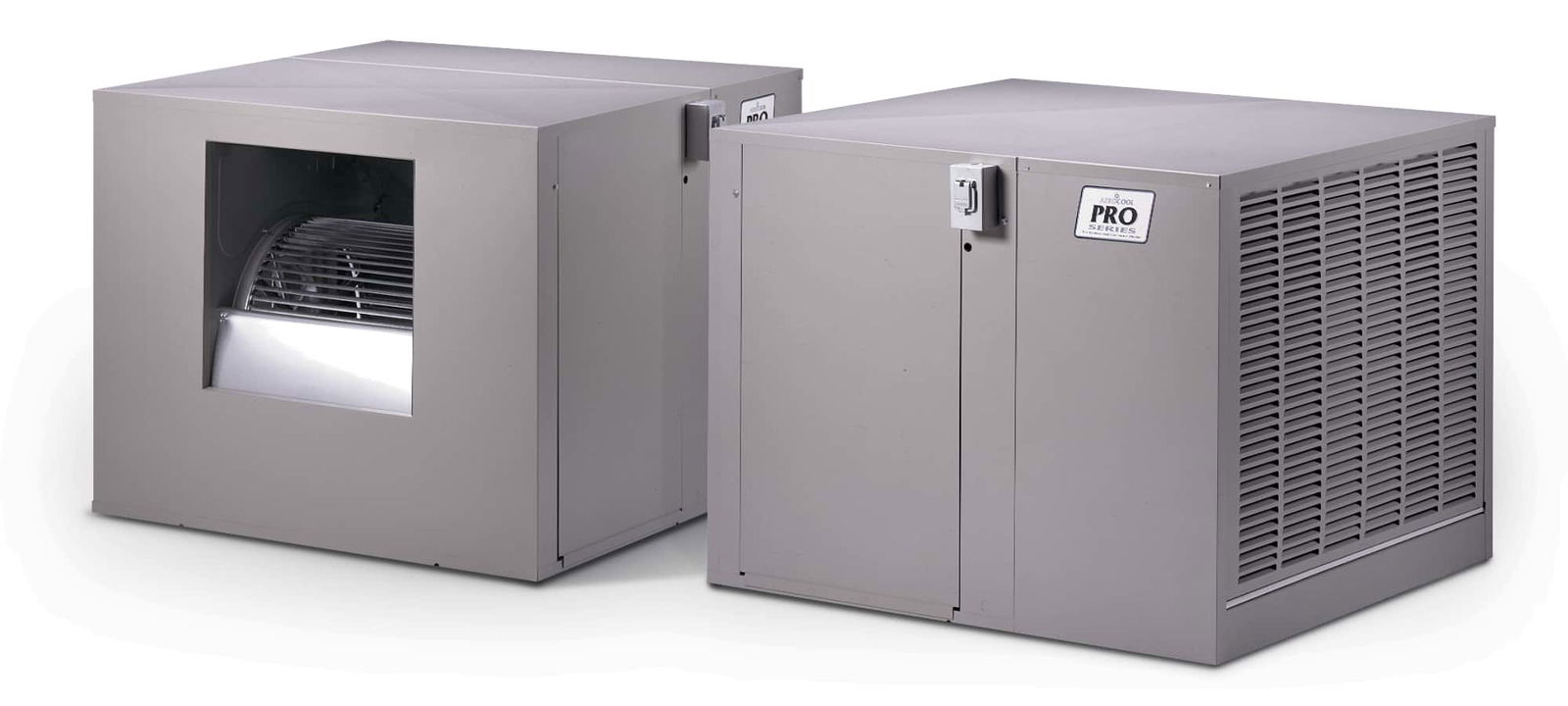

Phoenix Manufacturing | ProSeries Sustainable Cooling

Performance & Efficiency

Set the comfort level for you and your family and the AeroCool Pro-Series evaporative air cooler does the rest. Combined with the Pro-Stat programmable thermostat, the AeroCool Pro-Series will automatically and efficiently operate the equipment to best maintain your comfort level while using the least amount of energy.

High Efficiency Rigid Media

The AeroCool Pro Series features the Pro-4×4 High Efficiency Media to provide the coolest air possible while employing the Pro-Clean System to help maintain the entire system. The AeroCool Pro Series and its integrated systems work hard to help bring together both performance and efficiency while providing worry-free reliability.
Phoenix Manufacturing | ProSeries Sustainable Cooling

The Pro-Clean System

The Pro-Clean System maintains the cleanliness of your evaporative cooler by automatically draining the cooler and refilling with fresh clean water, thus avoiding scale build-up. The water used in the evaporative process is stored in-side the fully encapsulated Pro-Armor wet section. The AeroCool® Pro-Series includes the Pro-Shield weatherizing panel for use in the off-season to prohibit heat loss and unwanted air from entering the home during colder months. Defending the media from the elements of winter can also extend the life of your unit.

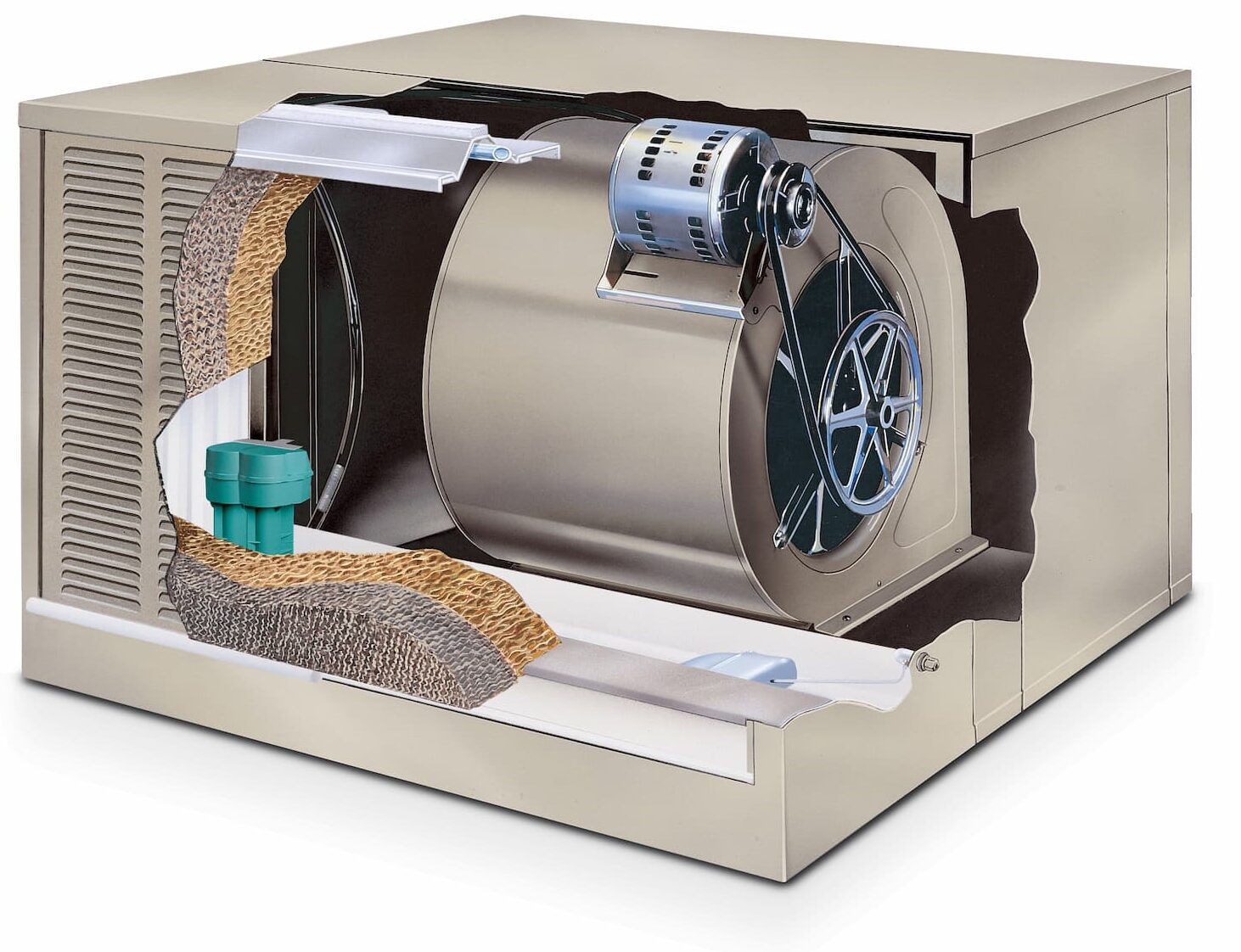

Benefits of the Aerocool® Pro Series

  • Pro-4×4 Media (1)
    This high-efficiency blend of media delivers colder air than any other home comfort evaporative cooler sold today.
  • Pro-Stat
    The cooler’s “brain” saves money by giving just the right amount of cool all the time. The new “Softspeed Transition” feature creates smoother operation when the motor automatically changes speed.
  • Low Sump pump (5)
    The most powerful pump on the market today. US Patent #5,527,157
  • Flomate (6)
    Flomate-quality water distribution system improves wet-out. US Patent #5,130,063
  • Pro-Clean System (7)
    Drains and washes the unit daily and can save as much as 3,000 gallons of water a month as compared to standard bleed-off system. US Patent 5,527,157
  • Factory Installed Wired Motors (9)
    All components are completely pre-wired by the factory, thus reducing installation time and increasing reliability.
  • Pro-Shield
    This weatherizing panel prohibits outward heat loss and cold air from entering into your home during the off-season. Easy to install, media protection is also afforded thereby increasing the life of the unit.

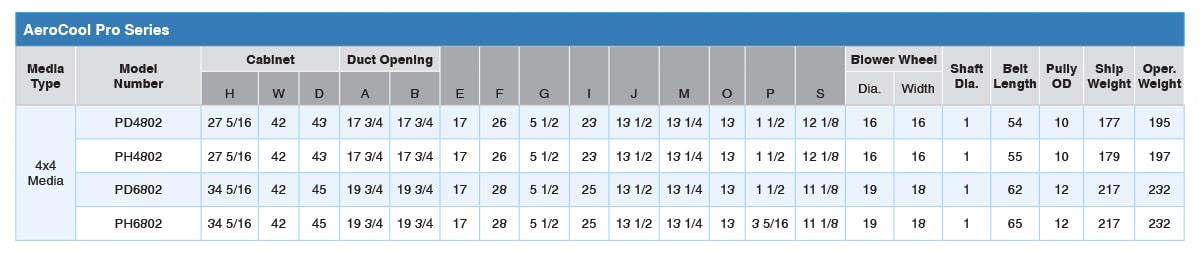

Choosing the right Pro-Series

Choosing the right Pro-Series model is important for proper operation. For maximum performance, choose the model with the proper rating and motor as well as the correct duct configuration. Ask your qualified contractor to help you choose the correct Pro-Series model that best fits your home and your needs.

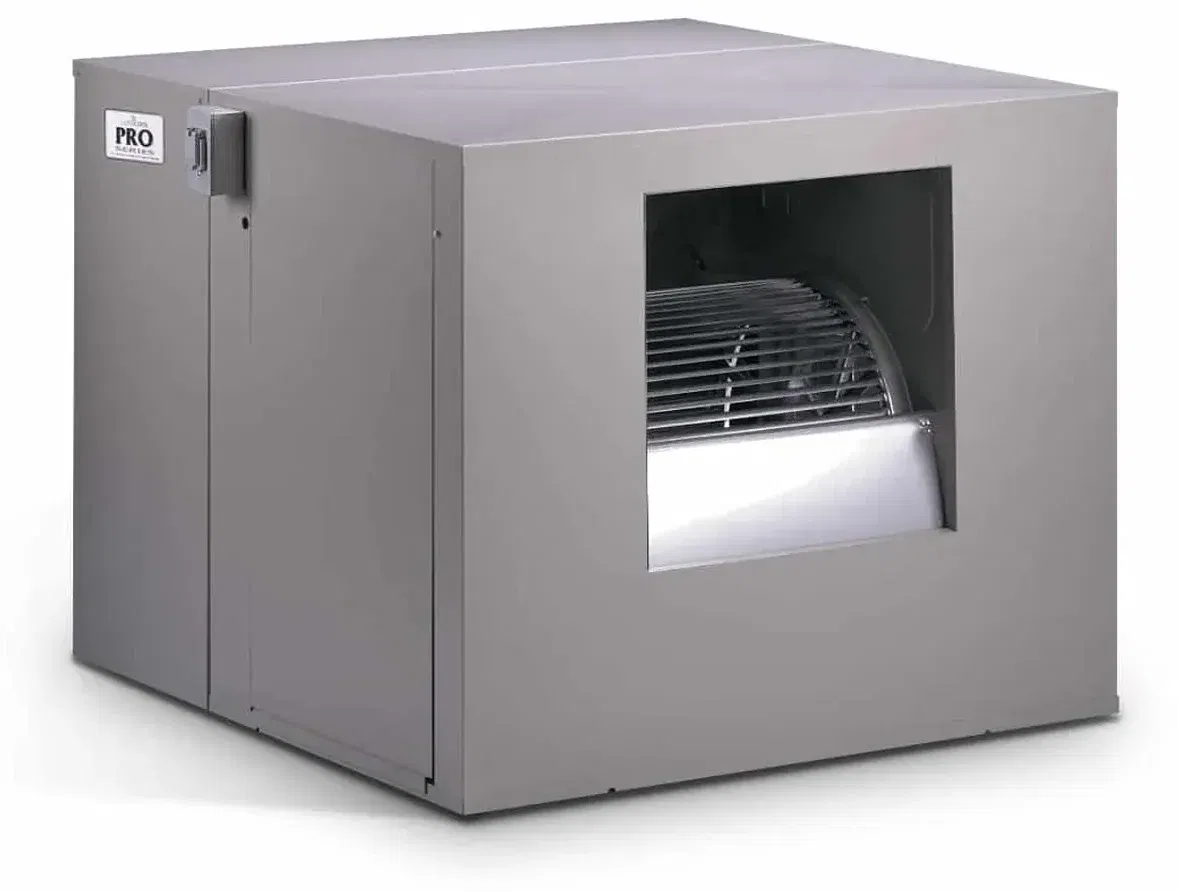

Residential Rigid Media-Coolers | Phoenix Manufacturing

Specifying U.L. Listed models
When specifying U.L. Listed models, add a “U” prefix to the front of the model number. These models require the use of our supplied motor kits and pumps.

Example: UPD4802

AeroCool Pro Series Brochure

AeroCool Pro Series Brochure
AeroCool Pro Series Owner’s Manual English
AeroCool Pro Series Owner’s Manual Spanish
AeroCool Pro Series Submittal Sheet
AeroCool Pro Series Replacement Parts List
AeroCool Pro Series Warranty
AeroCool Pro Series 115 Volt Control Box Wiring Diagram
AeroCool Pro Series 230 Volt Control Box Wiring Diagram
Pro II Thermostat Installation Instructions
