Rigid Media Fan Coolers

Energy Efficiency withrigid-media-fan-coolers-1

Exceptional Performance

Rigid Media Industrial Fan Coolers, in the correct low static application, offer an energy efficient alternative to standard blower wheel units at a fraction of the operating cost. Designed for large areas with cooling needs to match, these units can save up to 70% in energy costs.

  • 70% Less Energy Costs
  • Meets or Exceeds Most Local & National Codes
  • U.L. Listed
  • 8″ Thick Rigid Media
More Air – Less Energy

These highly efficient, commercial grade blades deliver more air while using less horsepower than a comparable sized blower wheel model. These fan coolers are designed for open space applications such as warehouses, factories, manufacturing areas, laundries, etc., this specially designed six-blade fan provides the maximum air delivery. Approximately 21,600 CFM at 0.0’ static pressure can be obtained using only a 2 HP motor!


rigid-media-fan-coolers-2U.L. Listed For Safetyrigid-media-fan-coolers-3

These high capacity units are U.L. listed for safety when used in non-ducted, single discharge applications as seen to the left. All units are completely pre-wired with factory installed and tested motor and circulating pump systems. This unit will meet or exceed most local and national codes.

U.L. Listed when used in non-ducted, single discharge applications as shown.


Features & Benefits

Our Commercial Coolers line is constructed of hot dipped galvanized steel and treated with our 5-stage, durable Peblar XT appliance type finishing process.  Engineered and designed for reliable performance and long life, these commercial units will last through the years with minimum maintenance and optimum cooling capacity.

  • Units are UL Listed to UL Standard 507
  • High quality architectural grade Peblar XT® finish
  • Galvanized sheet steel is zinc coated at weight rated G40 or G90
  • Up to 30,000 CFM capacity
  • Three phase EISA motors are NEMA MG-1 table 12-12 compliant
  • Motor, belt, pump & float included
  • Bearings have an L10 bearing life of 39,600 hours
  • Multi-layer bottom pan finish



– RF SERIES –

  • 2-3 HP – 2 Wet Sections

  • 5 HP – 3 Wet Sections


rigid-media-fan-coolers-4

Economical High-Saturation Evaporative Cooling

We designed and built the Aerocool Commercial Cooler to meet today’s growing demand for increased sensible cooling with extremely low energy consumption. This rigid media type cooler provides the most universal, high saturating efficiencies available with evaporative cooling.

  • Up to 30,000 CFM capacity
  • Hot dipped galvanized steel constructed cabinet
  • U.L. Listed
  • 8″ Thick Rigid Media
  • AMCA Licensed Ratings
  • Peblar XT™ architectural finish, protects against rust

  • Performance certified is for installation type B: free inlet, ducted outlet.
  • Performance ratings include the effect of evaporative media.
  • Power (BHP) includes transmission losses.

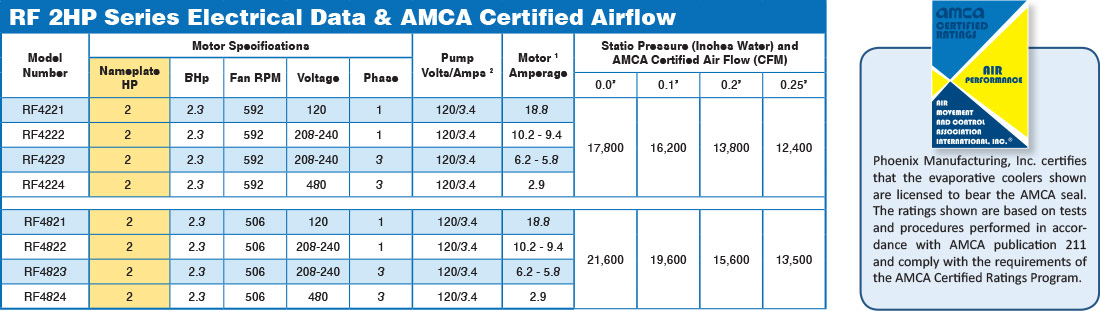

  1. All external wiring and components such as disconnects, motor starters, and over-current protection are to be field supplied and are not included as part of the evaporative cooler from the factory.
  2. A separate 120 volt, 60 hertz, single phase, GFCI protected pump circuit is required to maintain the UL Listing of the evaporative cooler. Pump capacity shown is total for 2 pumps per evaporative cooler.






  • Performance shown is installation Type B – Free Inlet, duct outlet.
  • Power Rating (B.H.P.) includes transmission losses.
  • Performance ratings include the effects of evaporative media in the airstream.

AeroCool Rigid Media Commercial Fan Cooler



RF Rigid Media Commercial Fan Cooler
